Wear Resistant Casting
Button / Ring Wear Block
Wear Resistant Casting
Overview:
Button wear block: We recommend you Button wear block when wear resistance is required at local or certain points
Ring wear block: Ring wear block can avoid the concave and convex position of the original machinery, providing wear protection at the concave and convex edge, improving the wear resistance and prolong the service life.
Product Details
Overview
Button wear block: Button wear block is the best choice when wear resistance is required at local or certain points.
Ring wear block: Ring wear block can avoid the concave and convex position of the original machinery, providing wear protection at the concave and convex edge, improving the wear resistance and prolong the service life.

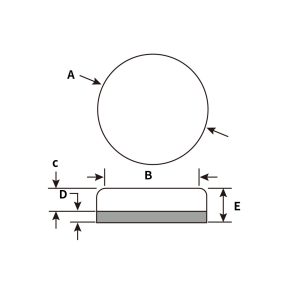

| Part No. | A | B | C | D | E | Weight (kgs) |
| WB60 | 60 | 40 | 20 | 10 | 30 | 0.7 |
| WB75 | 75 | 55 | 20 | 10 | 30 | 1.0 |
| WB75-27 | 75 | 55 | 17 | 10 | 27 | 0.9 |
| WB90 | 90 | 70 | 20 | 10 | 30 | 1.5 |
| WB90-32 | 90 | 70 | 20 | 12 | 32 | 1.6 |
| WB115 | 115 | 95 | 20 | 12 | 32 | 2.6 |
| WB150 | 150 | 130 | 25 | 16 | 41 | 5.7 |
| WB150-32 | 150 | 130 | 20 | 12 | 32 | 4.5 |
